HPE PL ML30g11 E-2436 (2.9G/6C12T) 16G (P64336) VROC 8SFF 800W 4x1G NBD311
HPE PL ML30g11 E-2436 (2.9G/6C12T) 16G (P64336) VROC 8SFF 800W 4x1G NBD311
HPE PL ML30g11 E-2436 (2.9G/6C12T) 16G VROC 8SFF 800W 4x1G NBD311
| Performance Models | |
| SKU Number | P65096-421* (EMEA) |

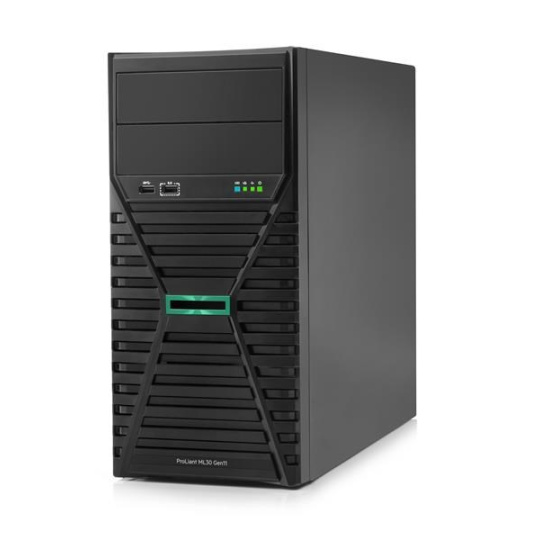

| Model Name | HPE ProLiant ML30 Gen11 E-2436 2.9GHz 4-core 1P 16GB-U 8SFF-HP Server |
| Processor | Intel® Xeon® E-2436 (6-Core, 2.9 GHz, 65W) |
| Number of Processors | One processor |
| Memory | 16 GB UDIMM DDR5 4800 MT/s (1x 16 GB) Notes: - Runs at 4400 MT/s per processor support - System maximum memory capacity - up to 64GB via field upgrade (4x 16GB) |
| Network Controller | HPE embedded 1Gb 4-port BCM5719 network adapter |
| Storage Controller | Embedded Intel® VROC SATA software RAID Notes: SATA Only |
| Hard Drive | None included |
| Internal Storage | 8 SFF HDD Bays (Hot Plug) |
| Optical Drive Bay | Optional Slimline ODD Bay Kit (P65102-B21) consumes 1 media bay Notes: Up to 1 optical drive bay |
| Optical Drive | None included |
| PCI-Express Slots | 1 PCIe 5.0 slots, 3 PCIe 4.0 slots |
| Power Supply* | (1) 500W HPE Flex Slot Power Supply (1) 800W Redundant Power Supply* Notes: Add a second 500W or 800W Flex Slot Power Supply to get 1+1 power redundancy feature. |
| Fans | 1 non-hot plug non-redundant system fan
|
Notes: * P65095-421, P65397-421 and P65096-421 offered with 800W power supplies only in EMEA for EU Lot 9 Compliance | |||||||||||

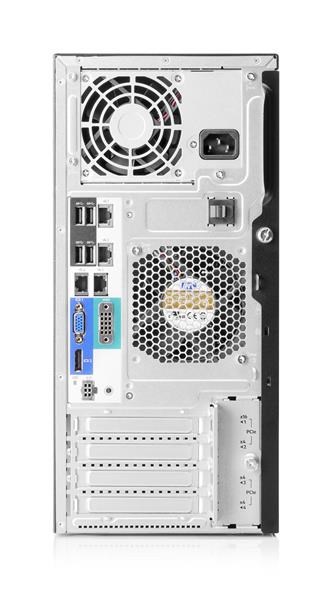

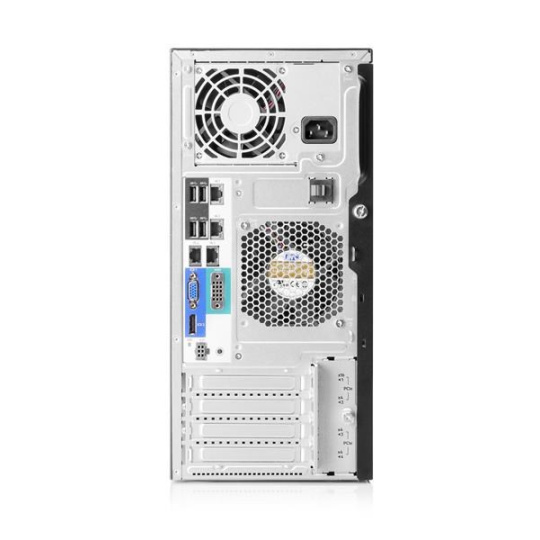

Video
1 Rear - VGA port (standard on all chassis types)
1 Rear - Display port
Serial Port
1 port - Optional (Rear)
Network Port (RJ-45)
4x 1GbE embedded NIC (standard on all chassis types)
ILO Remote Management Port
1 Gb Dedicated NIC (Optional RJ45 Connector)
USB
8 USB ports (standard)
Front: 2x USB Type-A ports with 1x USB 3.2 Gen 1x1
and 1x USB 2.0 (iLO service port)
Rear: 4x USB Type-A Ports, 3.2 Gen 1x1
Internal: 2x USB 3.2 Gen 2x1
.
