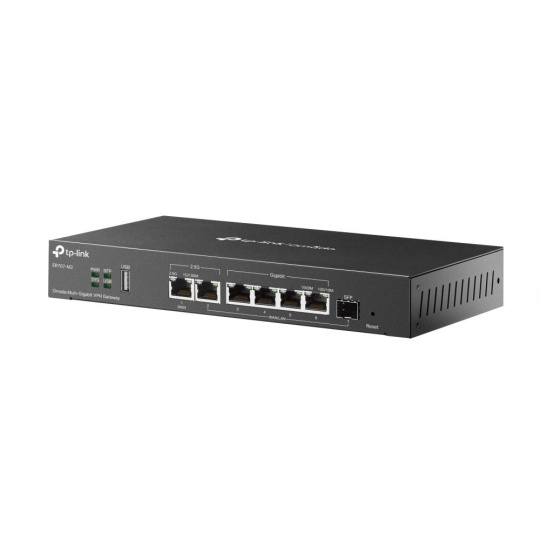

TP-Link ER707-M2 OMADA VPN router (1x2,5GbEWAN,1x2,5GbELAN,1xSFP WAN/LAN,4xGbELAN/WAN,1xUSB2.0)
Popis a parametre
TP-Link ER707-M2 OMADA VPN router (1x2,5GbEWAN,1x2,5GbELAN,1xSFP WAN/LAN,4xGbELAN/WAN,1xUSB2.0)
TP-Link ER707-M2
Omada Multi-Gigabit VPN Router
- Dva 2,5G porty: 1× 2,5G WAN a 1× 2,5G WAN/LAN porty poskytují vysokorychlostní agregační konektivitu.
- Až 6 portů WAN: 2,5G RJ45, gigabitové vlákno a gigabitové RJ45 WAN porty s vyvážením zátěže zvyšují míru využití vícelinkového širokopásmového připojení.
- Vysoce bezpečná VPN: SSL/IPSec/GER/PPTP/L2TP VPN a OpenVPN jsou ideální pro použití ve více pobočkách a pro WFH.
- Integrováno do Omada SDN: Podporuje Zero-Touch Provisioning (ZTP), centralizovanou správu cloudu, inteligentní monitorování a další.
- Centralizovaná správa: Přístup ke cloudu a aplikace Omada poskytují maximální pohodlí při správě.
- Rozsáhlé funkce zabezpečení: Chraňte svou síť a data pomocí pokročilých zásad brány firewall, obrany proti DoS, filtrování IP/MAC/URL a dalších funkcí zabezpečení.
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er707-m2/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface | • 1× 2.5G RJ45 WAN Port • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 12V/1.5A Adapter |
| PoE Budget | - |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |

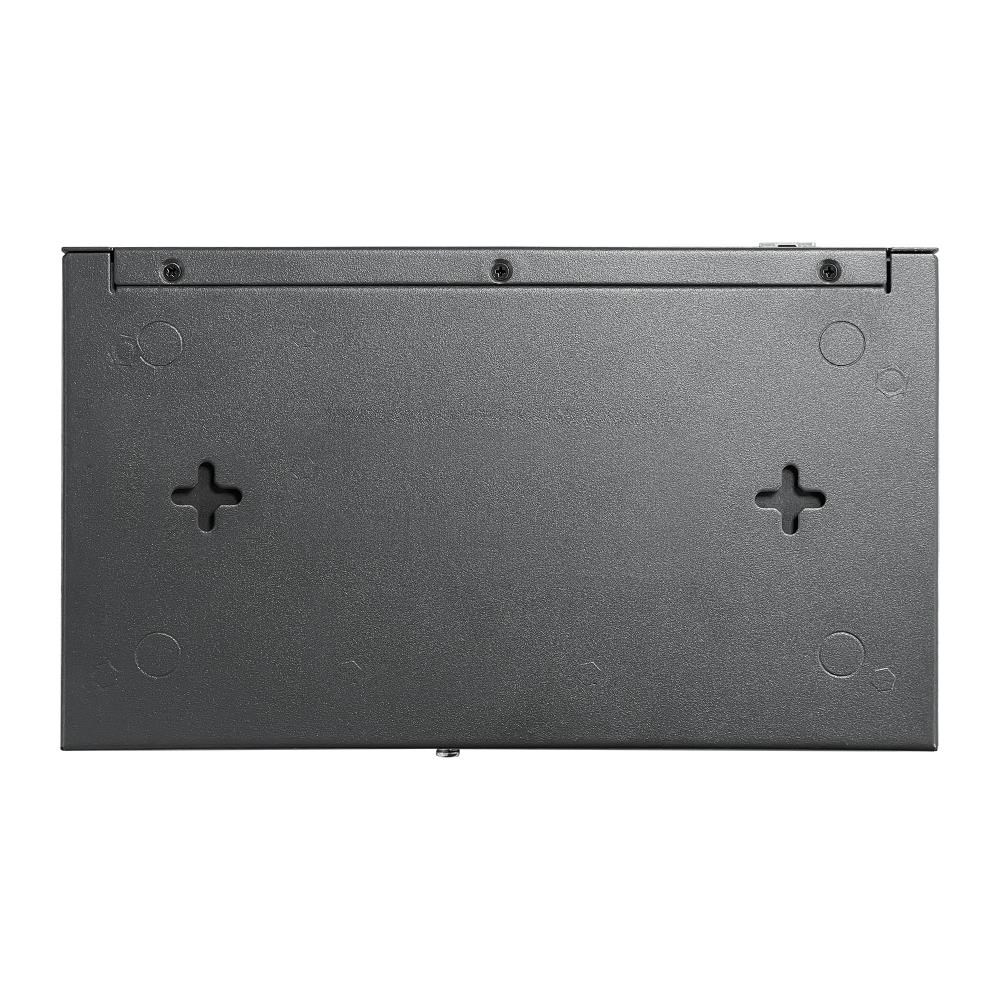

| Mounting | Desktop/Wall Mounting |
| Max Power Consumption | 14.2 W (with USB2.0 connected) 7.1 W (without USB2.0 connected) |
| PERFORMANCE | |
| Concurrent Session | 500 |
| New Sessions /Second | 4,2 |
| NAT (Static IP) | 2364.45 Mbps / 2343.28 Mbps |
| NAT(DHCP) | 2364.24 Mbps / 2326.21 Mbps |
| NAT(PPPoE) | 2350.93 Mbps / 2125.83 Mbps |
| NAT (L2TP) | 1249.04 Mbps / 831.12 Mbps |
| NAT (PPTP) | 1169.23 Mbps / 1175.52 Mbps |
| IPsec VPN Throughput | ESP-MD5-AES256: 537.12 Mbps ESP-SHA1-AES256: 754.65 Mbps |
| L2TP VPN Throughput | Unencrypted: 1442.65 Mbps Encrypted: 346.43 Mbps |
| SSL VPN Throughput | 142.99 Mbps |
| 66 Byte Packet forwarding rate | 1832.69 Mbps / 1741.84 Mbps |
| 1,518 Byte Packet forwarding rate | 2461.18 Mbps / 2457.32 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6in4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server/Client • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP* |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT | • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Security | • Attack Defense: TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN • Filtering Web Group Filtering URL Filtering Web Security • ARP Inspection: Sending GARP Packets ARP Scanning IP-MAC Binding • Access Control Source/Destination IP Based Access Control |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Clients (12) • 60 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Clients (12) • 60 Tunnels (Shared with PPTP) • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Clients (6) • 66 OpenVPN Tunnels* |
| SECURITY | |
| Filtering | WEB Group Filtering§ URL Filtering Web Security§ |
| ARP Inspection | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password* • Hotspot (Local User/Voucher* /SMS*/Radius*) • External Radius Sever • External Portal Sever* • Facebook* |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER707-M2 • Power Adapter • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing |
.
ParametrePridať do porovnania
Počet portů LAN
6
USB port
Ano
Gigabit ethernet
Ano
Další vlastnosti
Firewall
Další vlastnosti
Podpora IPv6
Další vlastnosti
FTP server
Další vlastnosti
VLAN
Další vlastnosti
Management
Funkce
Firewall
Funkce
VPN
Funkce
Router
Počet SFP portů
1
Počet portů LAN
6
Počet SFP portů
1
